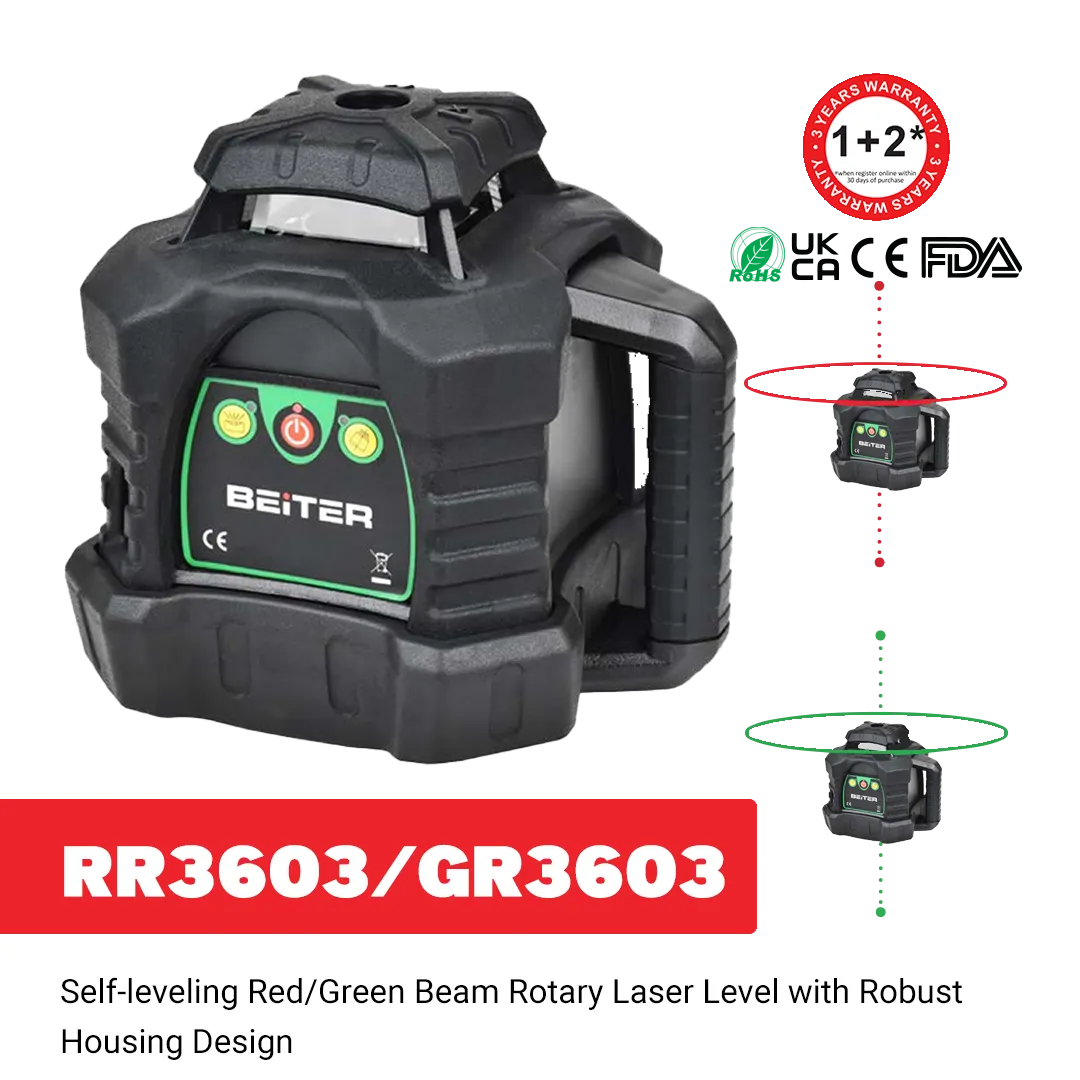

RR3603/GR3603

Self-leveling Red/Green Beam Rotary Laser Level with Robust Housing Design

Technical Data RR3602/GR3602 RR3603/GR3603

Laser Features Motorised Horizontal and Vertical Scanning Motorised Horizontal and Vertical Scanning

Working Range With Receiver Red Laser: 500m(Diameter)

Green Laser: 800m(Diameter)

Red Laser: 500m(Diameter)

Green Laser: 800m(with Laser Detector)

Accuracy ±1/16"@100ft.(±0.05mm/m) ±1/16"@100ft.(±0.05mm/m)

Self-leveling Range ±5° ±8°

Laser Class/Wavelength

Class 3R

635nm For Red Laser

520nm For Green Laser

Class 3R

635nm For Red Laser

520nm For Green Laser

Water Proof/Dustproof Rating IP65 IP66

Horizontal Laser Angle 360° 360°

Vertical Laser Angle 360° 360°

Tripod Thread 5/8" 5/8"

Power Supply 4x Ni-MH Rechargeable Batteries 4x Ni-MH Rechargeable Batteries

Operating Temperature Red Laser: -10° c-45° c

Green Laser: -10° c-50° c

Red Laser: -10° c-45° c

Green Laser: -10° c-50° c

DC Charger Yes Yes

Out-of-level Indication Optical Signals Optical Signals

Incline Mode Yes Y
