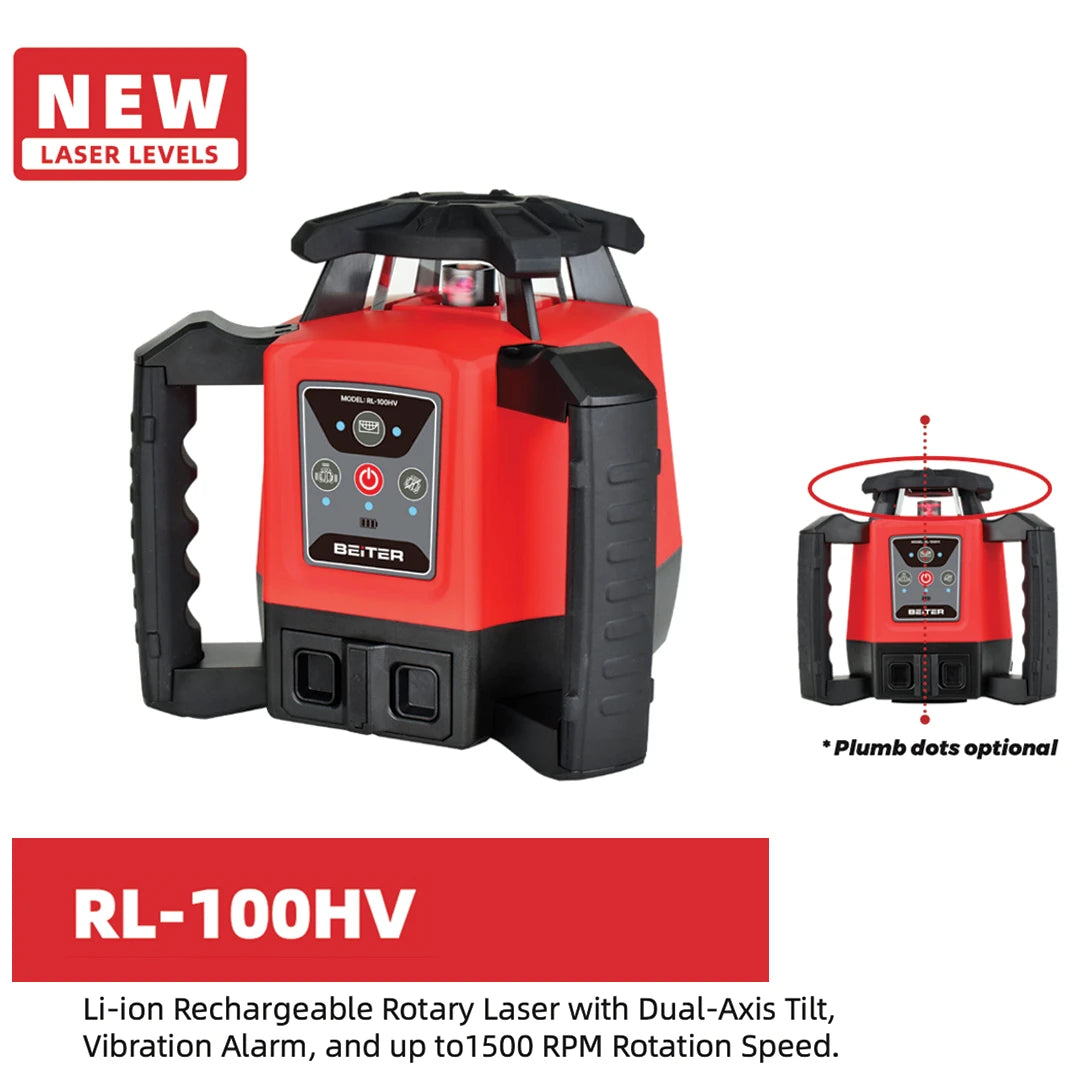

Rotary Laser Level - RL-100HV

RL-100HV

Professional Dual-Axis Rotary Laser Level

The RL-100HV is a high-precision rotary laser level engineered for professional construction, surveying, and alignment applications. Featuring motorized leveling, dual-axis slope control, and long-range operation up to 500 meters, it delivers exceptional accuracy, durability, and control in demanding job site environments.

Technical Specifications

Laser Diode / Wavelength: 638nm / 520nm

Leveling Method: Motorized leveling

Leveling Accuracy:

• ±0.75mm / 10m (default)
• Upgradeable to ±0.5mm / 10m

Self-Leveling Range: ±5°

Working Modes: Horizontal / Vertical

Working Radius:

• ≥ 500 m (with LP500 receiver)
• ≥ 400 m (with LP700 receiver)

Rotation Speed: 0 / 300 / 600 / 1000 RPM (adjustable via remote control)

Scan Angles: 5° / 10° / 30° / 90°

Slope Setting: Dual Axis

Power & Battery

Battery Type: 16.8V 2.0Ah Li-ion

Operating Time: Up to 22 hours

Input: 5V 2A

Durability & Environment

Operating Temperature: −10°C to 50°C

Protection Class: IP65 (dustproof and water-resistant)

Calibration Method: Remote Control / Mobile App

Remote Control Distance: Up to 150 m (RC100)

User Level: Professional

Key Features

• Motorized Self-Leveling System – Fast and precise automatic leveling
• Dual-Axis Slope Function – Ideal for grading, drainage, and alignment work
• Long-Range Performance – Up to 500m working radius with receiver
• Adjustable Rotation Speeds & Scan Angles – Flexible for different applications
• Horizontal & Vertical Operation – Suitable for full layout and alignment tasks
• Remote Control & App Calibration – Convenient and precise adjustments
• IP65 Protection – Reliable performance in harsh job site conditions

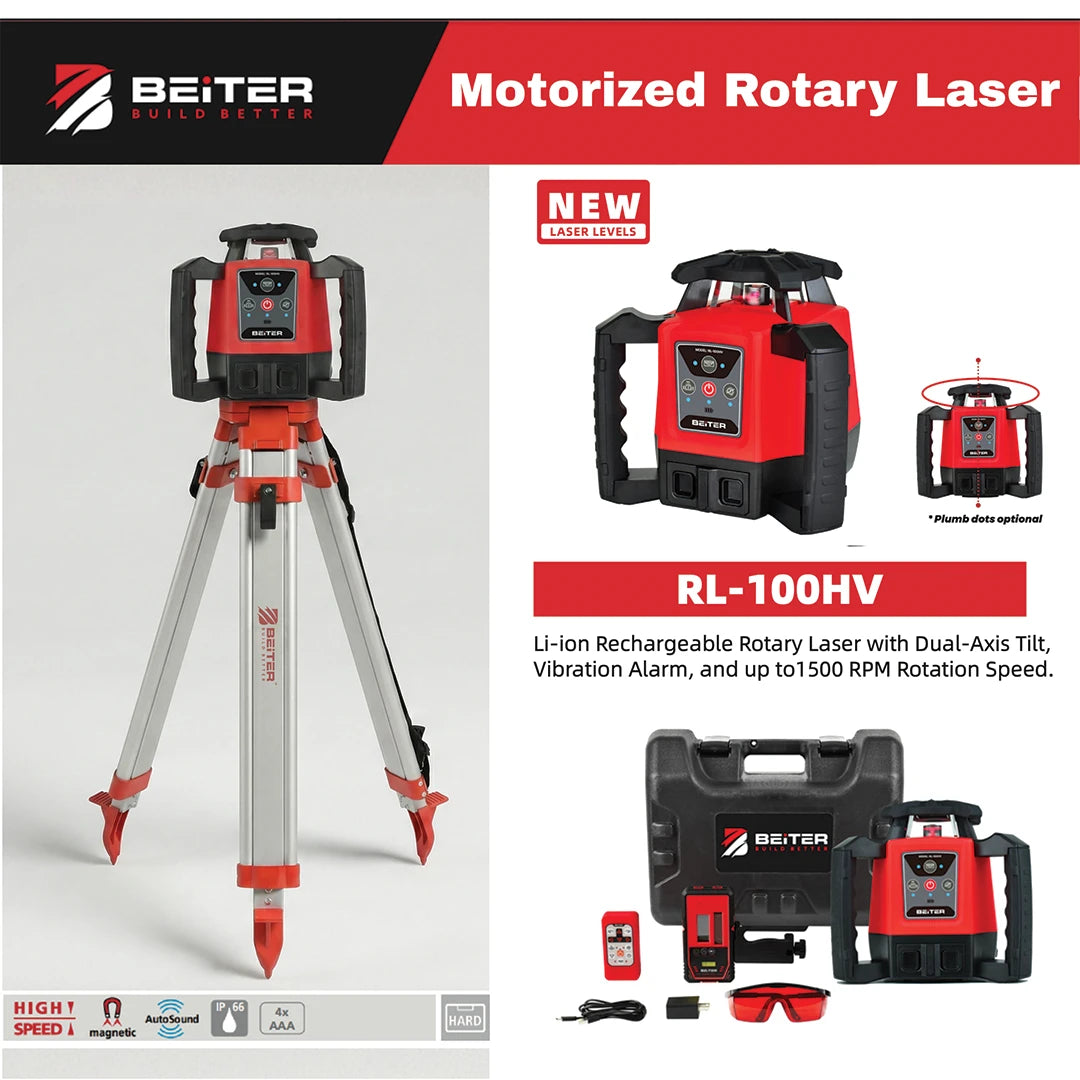

Included Accessories

• Laser Level ×1
• Li-ion Battery ×1 (installed)
• Charger ×1
• USB-C Cable ×1
• Laser Enhancement Glasses ×1
• Laser Receiver with Clamp ×1 (LP500)
• Remote Control ×1 (RC100)
• Hard Carrying Case ×1

Charging Instructions

When the battery indicator light on the control panel turns on, recharge the unit promptly.

• Connect the charger to an AC power supply
• Plug the charger into the charging port on the bottom of the instrument
• Red Light: Charging in progress
• Green Light: Charging complete

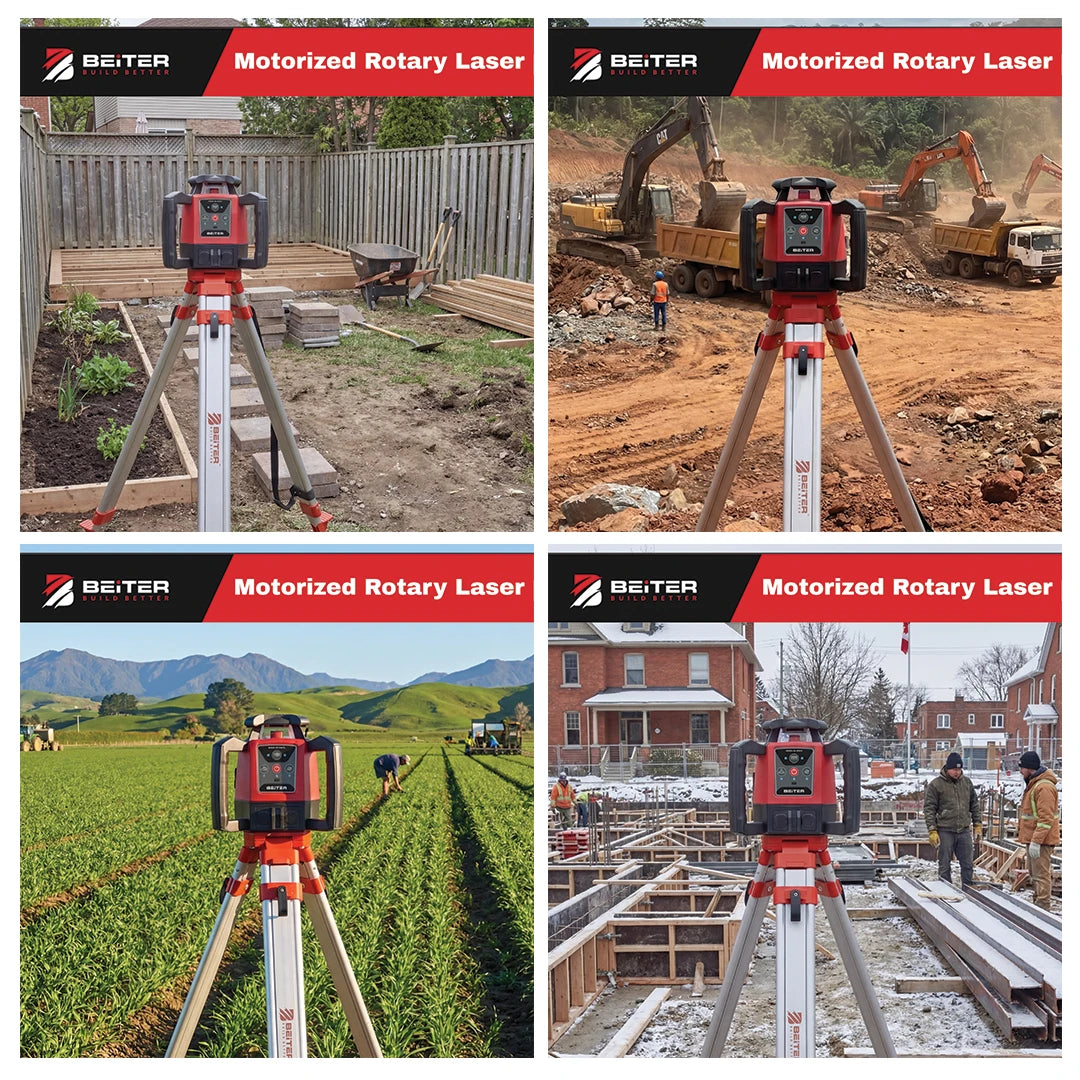

The RL-100HV combines professional-grade accuracy, extended range, and intelligent control features, making it the ideal solution for construction layout, leveling, grading, and alignment applications.
