BOL-32X

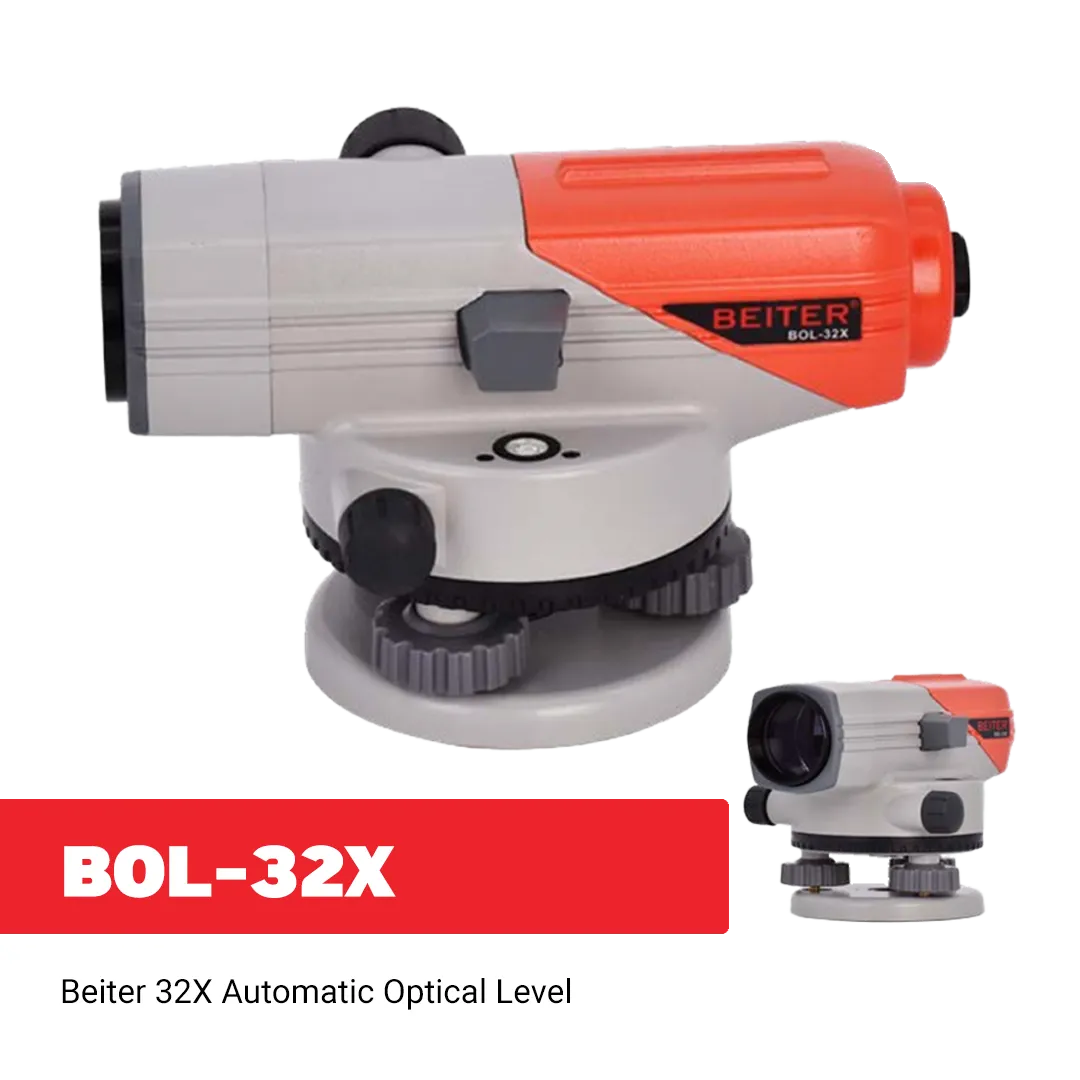

Beiter 32X Automatic Optical Level

Technical Data

Model No. 32X

Image Erect Image

Objective Aperture ≥ 42mm

Min.focusing Distance 0.3mm

Stadia Multiplication Constant 100

Stadia Additive Constant 0

Resolution ≤ 4"

Working Range 15'

Compensating Error ≤ ±0.3"/1'

Setting Accuracy ≤ ±0.5"

Scale Graduation Range 360° /400G

Scale Minimum Value 1" /1gon

GO/RE Observation Error ±2mm/km

Sensitivity of Circular Bubble 8'/2mm

Base Screw M16 or 5/8" X1/11" (Optional)

Environmental Temperature -25℃ to 50℃
