BEITER THERM-X1 Smart Infrared Thermal Imager

Name: BEITER THERM-X1 Smart Infrared Thermal Imager
Brand: BeiterTools
Availability: InStock

See What the Naked Eye Cannot. Detect Heat Loss, Moisture, Leaks and Overheating with Confidence.

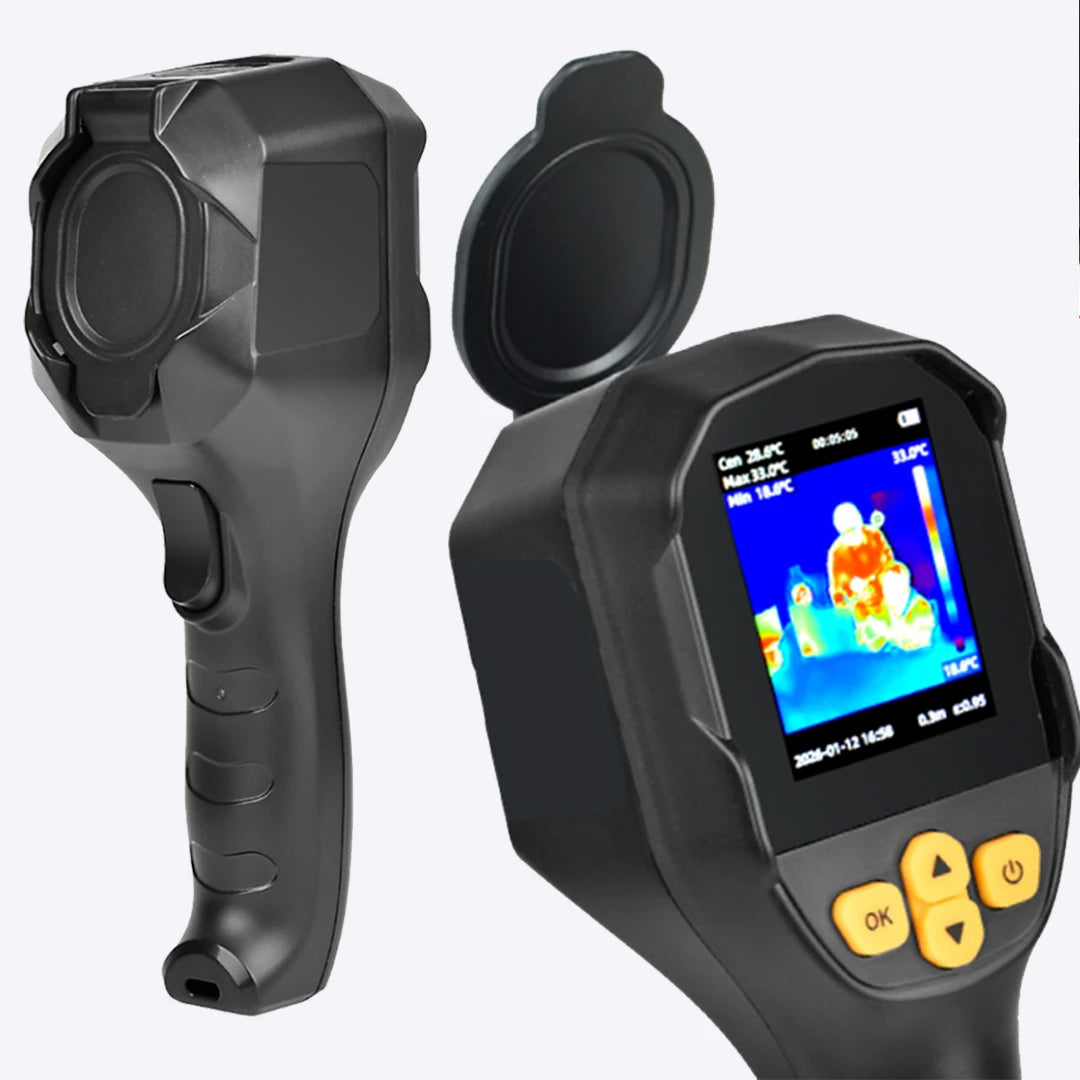

The BEITER THERM-X1 Smart Infrared Thermal Imager is a professional-grade thermal inspection tool built for installers, maintenance professionals, and serious DIY users who need reliable, detailed thermal data beyond what entry-level viewers can offer. From diagnosing heat loss in buildings to identifying overheating in electrical installations, the THERM-X1 delivers accurate, actionable thermal intelligence in a compact and durable handheld device.

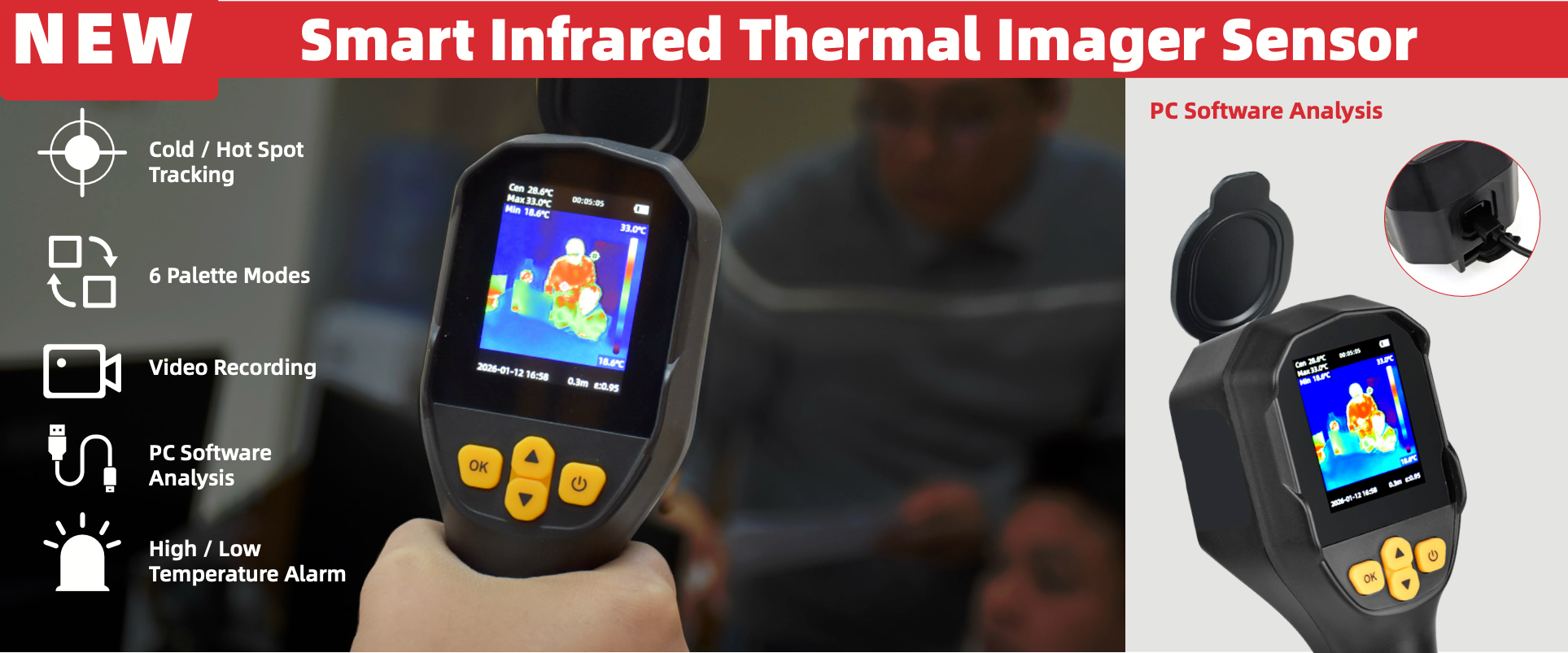

Key Features

Smart Infrared Thermal Imaging: VOx detector with 96x96 IR resolution for clear, detailed thermal images
Cold and Hot Spot Tracking: Instantly locate temperature anomalies across any surface
Wide Temperature Measurement Range: Detects temperatures from -25°C to 560°C with accuracy of +/-2°C or +/-2% of reading
6 Palette Modes: Choose the best color palette for your inspection environment
25Hz Image Frame Rate: Smooth, real-time thermal imaging for dynamic inspections
TISR Super Resolution: Enhanced image output at 240x240 resolution for greater detail
Video Recording Support: Capture thermal video in MP4 format for documentation and reporting
PC Software Analysis Tool: Advanced post-inspection analysis via dedicated PC software
High and Low Temperature Alarm: Instant alerts when readings exceed set thresholds
Center Point, Max and Min Temp Display: Full on-screen temperature measurement at a glance
7-Hour Battery Life: 2000mAh built-in battery for full-day operation on a single charge
IP54 Ingress Protection: Protected against dust and water splashes
1.5m Drop Resistance: Built to survive accidental drops on the job
Type-C Charging Port: Fast, convenient recharging
10 Language Support: Accessible for international teams and users
External SD Card Storage: Expandable storage with standard 4GB card included

Specifications

Feature	Details
Product Reference	THERM-X1
Detector Type	VOx
IR Resolution	96 x 96
IR Wavelength	8 to 14 μm
Pixel Spacing	12 μm
Focal Length	1.35 mm
IFOV	8.89 mrad
Image Frame Rate	25 Hz
NETD	60 mK at 25°C, F#1.0
Focal Adjustment	Fixed Focal
Field Angle	50° x 50°
Temperature Range	-25°C to 560°C
Temperature Accuracy	+/-2°C or +/-2% of reading
Minimum Scale	0.1°C
Temp Units	°C / °F / K
Image Mode	IR
TISR Resolution	240 x 240
Image Format	JPEG
Video Format	MP4
PC Analysis	Yes, PC Analysis Tool
Storage	External SD Card, 4GB Standard
Data Port	Type-C
Battery	2000mAh, Non-Removable
Charge Time	4 hours or less
Battery Life	7 hours or more
Working Temperature	-10°C to 50°C
IP Rating	IP54
Drop Resistance	1.5 m
Certifications	CE, FCC, RoHS
Device Weight	310 g
Device Size	225 x 70 x 86.44 mm
Languages	10 Languages Supported

Who Is This For?

The THERM-X1 is the ideal thermal imager for installers, building inspectors, electrical maintenance professionals, and advanced DIY users who need a reliable, feature-rich thermal imaging tool to detect heat loss, moisture intrusion, water leaks, and electrical overheating quickly and accurately.
