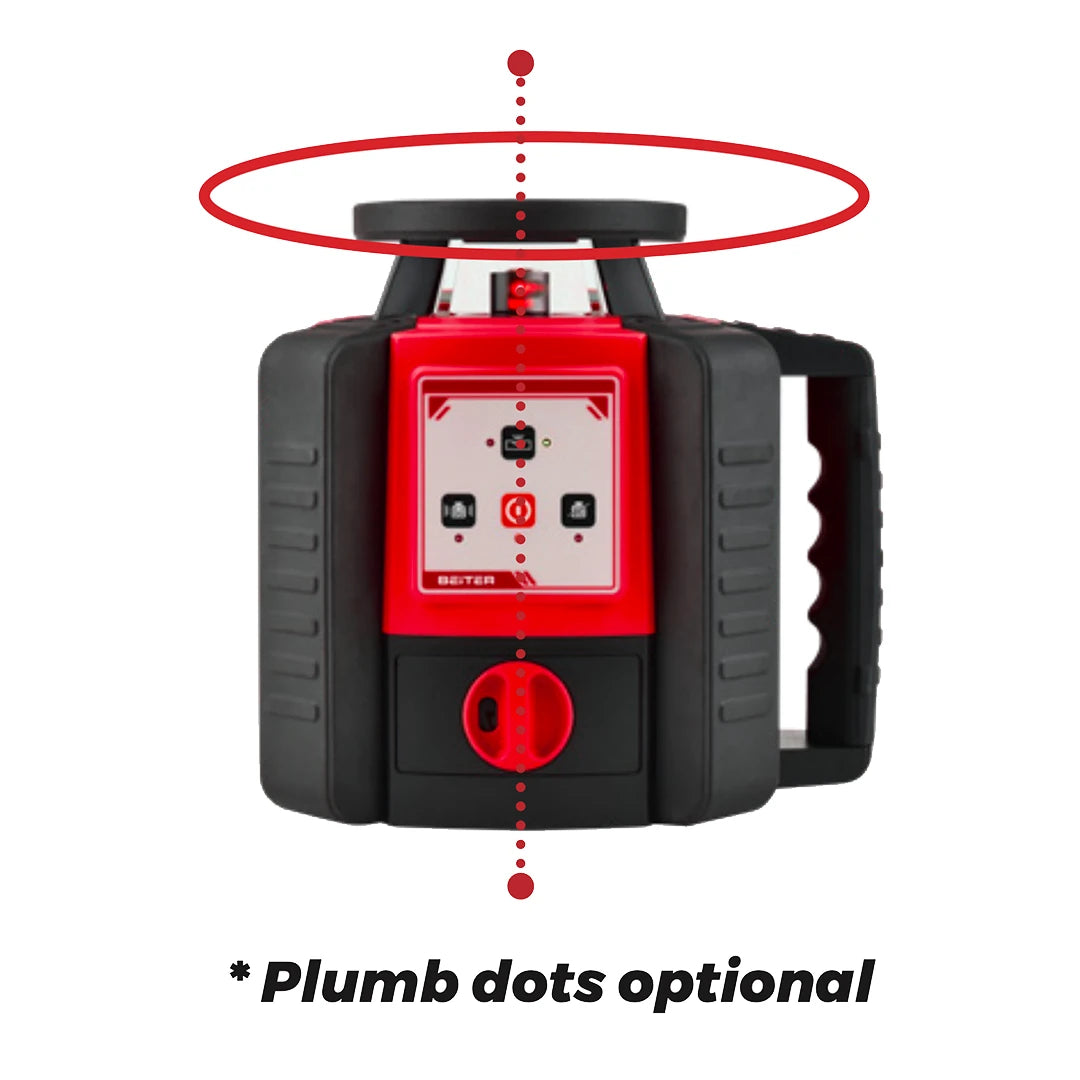

BEITER RL-100HV Professional Rotary Laser Level | Dual Axis Slope | 500M Range |

Pro-Grade Li-ion Rotary Laser Built for Maximum Range, Speed, and Precision

The BEITER RL-100HV is a professional-grade rechargeable rotary laser engineered for the most demanding construction and surveying environments. Featuring dual axis tilt, vibration alarm, upgradeable accuracy to +/-0.5mm at 10 meters, and rotation speeds up to 1500 RPM, the RL-100HV is designed for professionals who need uncompromising performance across large-scale job sites. With a working radius of up to 500 meters and compatibility with the LP500, LP700, RC200, and RC300 receivers and remotes, this is a fully scalable professional laser system.

Key Features

• Motorized Self-Leveling: Automatic leveling within +/-5° for fast, effortless setup on site
• High Leveling Accuracy: +/-0.75mm at 10 meters as standard, upgradeable to +/-0.5mm at 10 meters
• Extended Working Radius: Up to 500 meters with LP500 receiver, 400 meters with LP700
• Dual Axis Slope Setting: Independent slope control on both axes for advanced grading applications
• High-Speed Rotation: Up to 1500 RPM via remote control for fast scanning on large sites
• Horizontal and Vertical Working Modes: Full versatility for layout, leveling, and alignment in any orientation
• Variable Scan Angles: 5°, 10°, 30°, and 90° scan modes for targeted or wide-area coverage
• Vibration Alarm: Instant alert if the instrument is disturbed during operation
• LCD Display Screen: Clear on-device readout for settings and status monitoring
• Remote Control and APP Calibration: Calibrate via RC100 remote or dedicated mobile app
• IP65 Ingress Protection: Fully dust-tight and protected against water jets for all-weather outdoor use
• Long Battery Life: 22 hours of continuous operation on a 16.8V 2Ah Li-ion battery
• Dual Bubble Level: Physical reference for quick manual alignment checks
• Expandable Remote Control Range: Compatible with RC100 at 150M, RC200 at 300M, and RC300 at 500M

Compatible Remote Controls

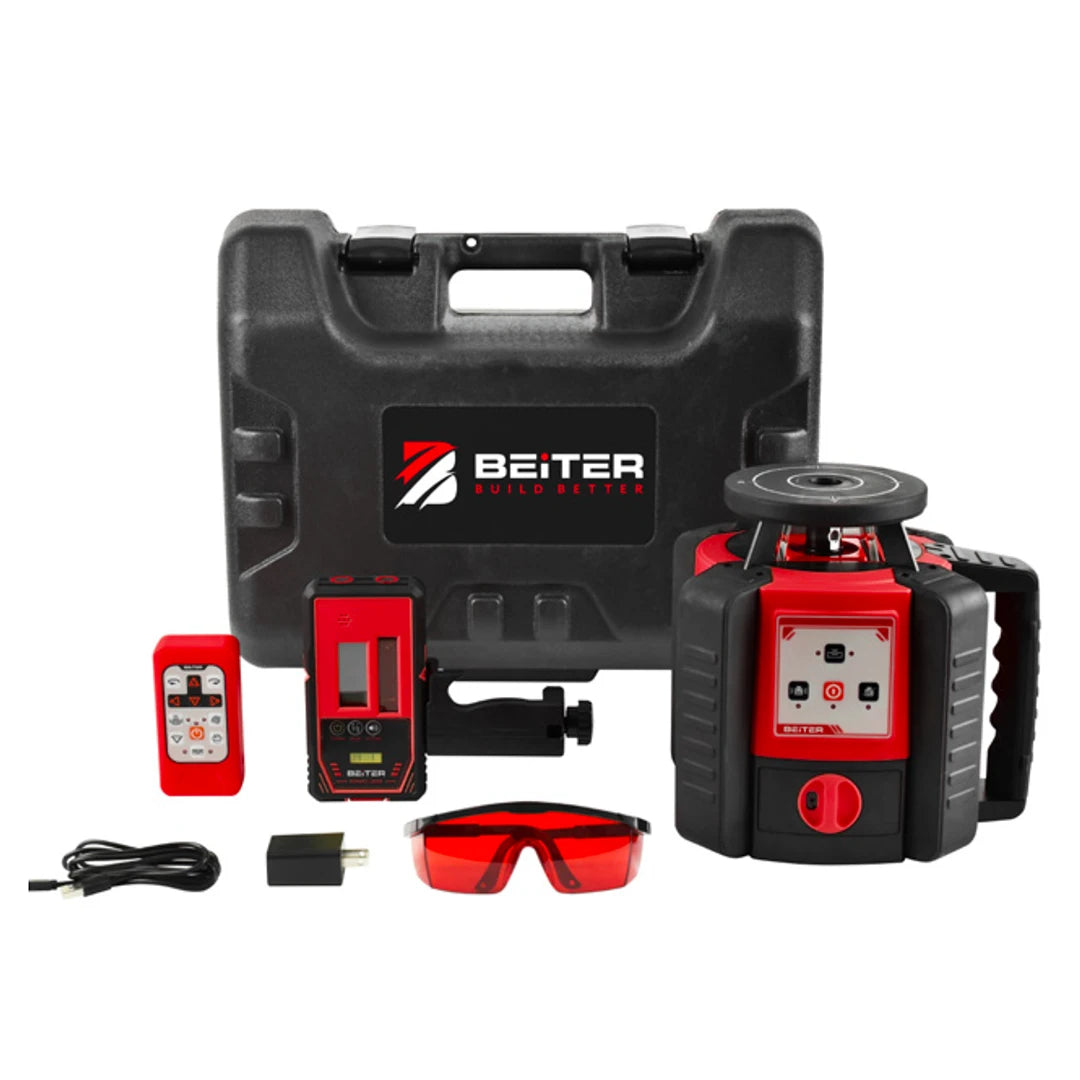

What Is In The Box

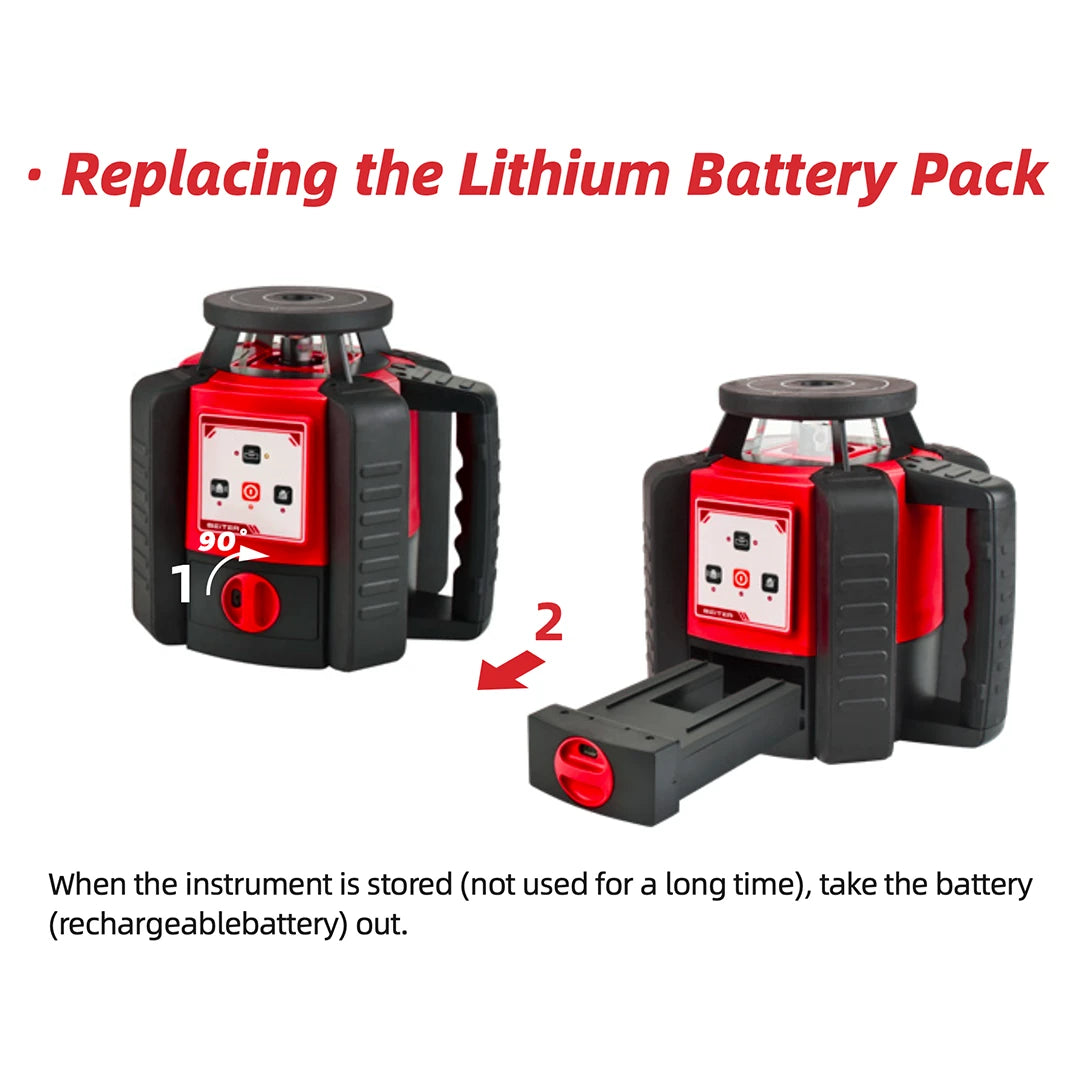

• BEITER RL-100HV Rotary Laser Level with Li-ion Battery

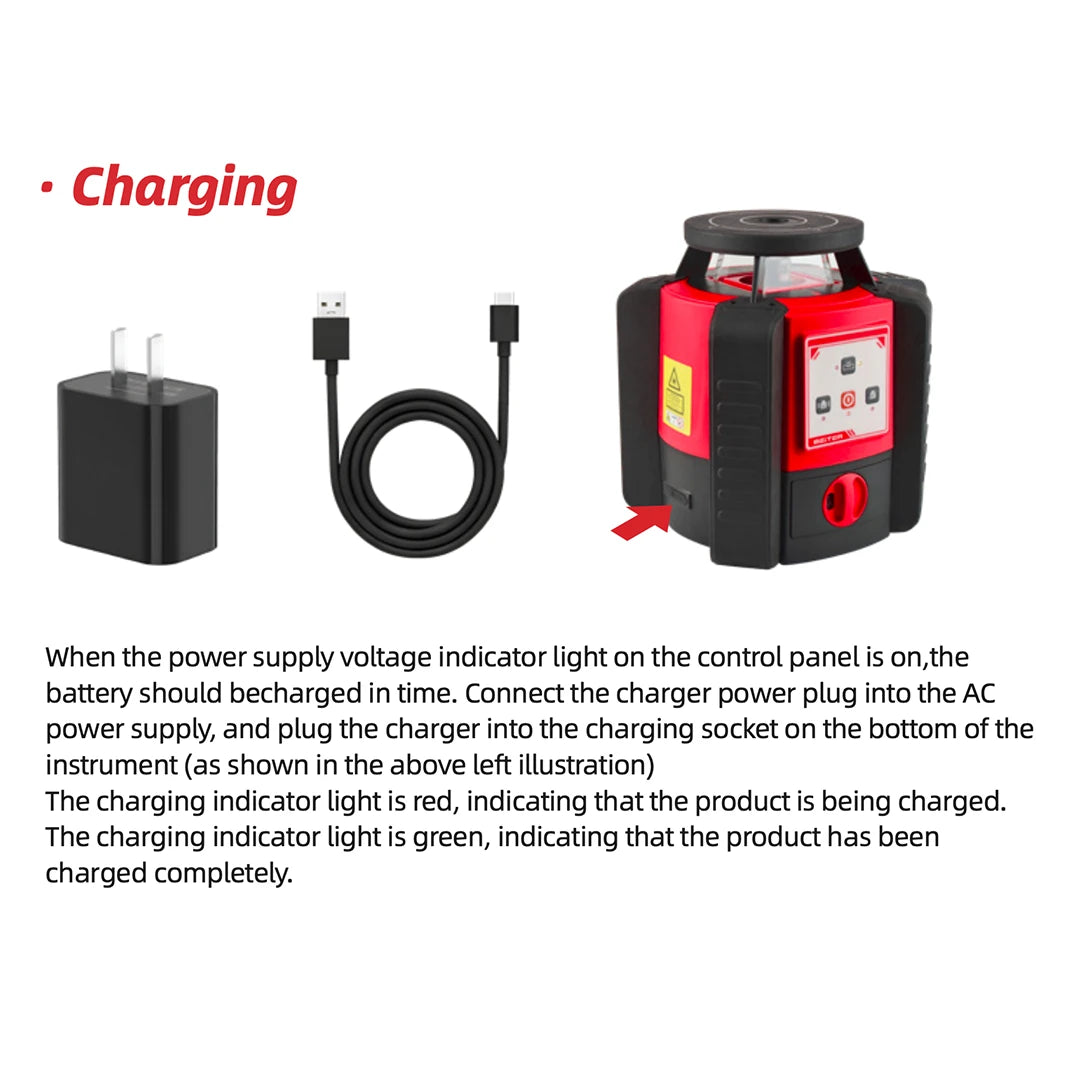

• Charger and USB-C Cable
• Laser Intensive Glasses

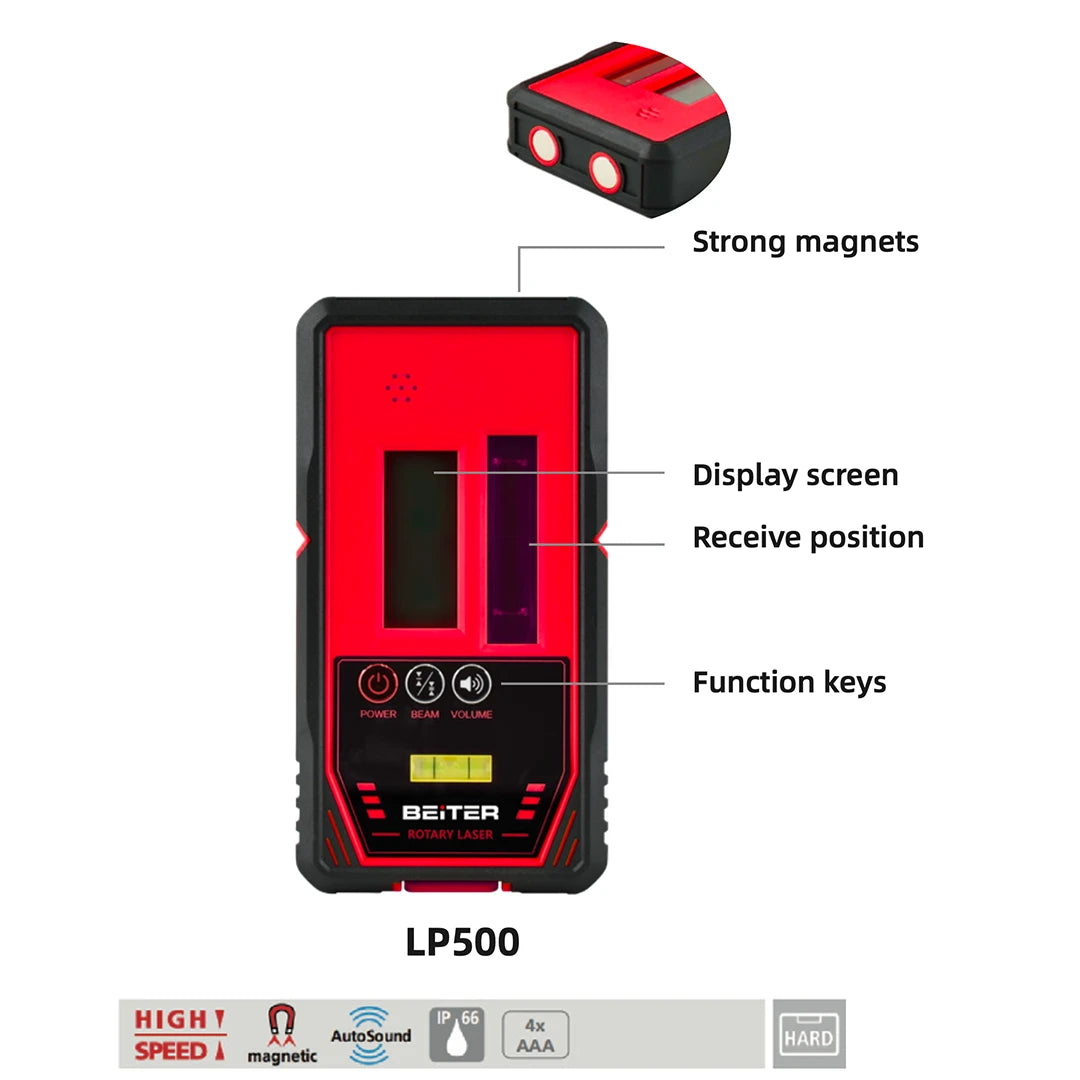

• LP500 Laser Receiver with Clamp
• RC100 Remote Control
• Hard Carrying Case

Specifications

Who Is This For?

The RL-100HV is built for professional contractors, civil engineers, surveyors, and site managers working on large-scale infrastructure, grading, foundation layout, and precision alignment projects where maximum range, high rotation speed, and advanced slope control are essential.
